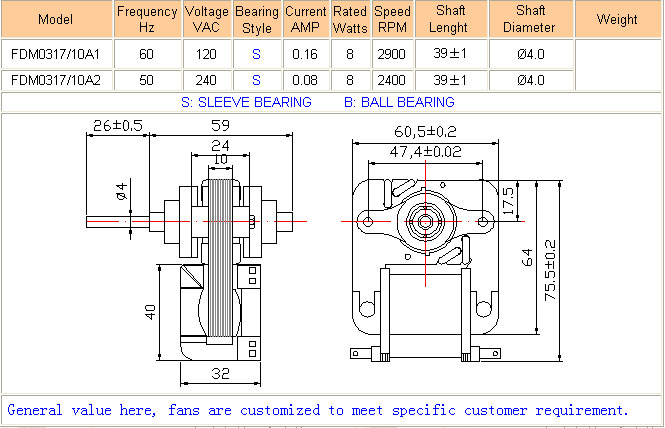

C Style Shaded-Pole Motors FDM0317/10
Housing：Die-Cast Aluminum Painted
Blade：Aluminum or Plastic
Insulation Resistance：10MΩ at 500VDC between lead and frame
Dielectric Strength：1 min at 1500VAC/50-60HZ ,current〈5mA
Operation Temperature：-20oC～80oC
Operation Humidity：20%～85%
Working voltage：85V～125V for 110V and 190V～250V for 220V
Life at 25oC：Ball bearing 60,000hr and sleeve bearing 30,000hr
Detailed Description
